Solar Inverter And UPS Equipments

• Application
• Other, Residential and small commercial solar power backup

• Cable Length
• Customizable as per installation

• Color
• White with blue accents

• Dimension (L*W*H)
• Approx. 350 x 400 x 150 mm (each unit, varies by model)

• Efficiency
• Greater than 90%

• Features
• Overload Protection, Short Circuit Protection, LCD Display, Battery Management

• Input Voltage
• 120V/220V AC, Solar DC up to 600V (varies by model)

• Installation Type
• Other, Wall Mount

• Maintenance Type
• Low, periodic inspection required

• Material
• Metal body with electronic components

• Max System Voltage
• 600V DC or as per model specification

• Max Voltage
• Up to 240V AC output

• Number of Cells
• Dependent on battery configuration (not specified on inverter)

• Operating Temperature
• 0C to 50C

• Output Voltage
• 220V / 230V AC

• Power
• Typically 1 kVA to 10 kVA (models may vary)

• Product Type

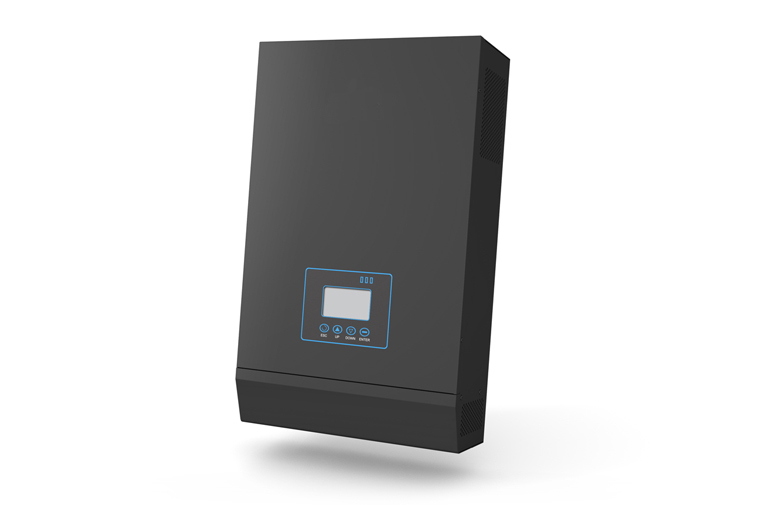

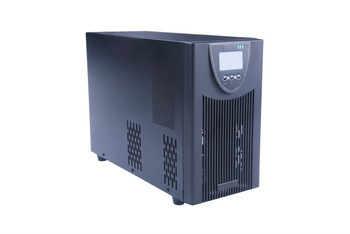

• Other, Solar Home UPS Inverter

• Size
• Varies by model (compact wall mount type)

• Switch Mode
• Other, Automatic / Manual

• Type Of Technology
• Other, Pure Sine Wave, Solar Hybrid Inverter

• Weight
• Approximately 10-20 kg (per unit, varies by model)

• Application
• Other, Residential, Commercial, Industrial Rooftop Grid Connection

• Cable Length
• Customizable as per site requirement

• Color
• Blue/Black (Typical for panels)

• Dimension (L*W*H)
• Standard panel: approx. 1960 mm x 990 mm x 35 mm

• Efficiency
• 16-21% panel efficiency

• Features
• Zero Battery, Grid Synchronization, Net Metering Compatible, Low Maintenance, Modular Design

• Input Voltage
• 330-350V DC (array level, typical)

• Installation Type
• Other, Rooftop/Floor Mounted

• Maintenance Type
• Periodic cleaning, minimal maintenance required

• Material
• Monocrystalline/Polycrystalline Silicon

• Max System Voltage
• 1000V DC

• Max Voltage
• 33-42 V DC (per panel, typical)

• Number of Cells
• 60/72 cells per panel (standard)

• Operating Temperature
• -40C to +85C

• Output Voltage
• 230V/415V AC (Grid Synchronized)

• Power
• 1 kW to 100 kW or as per requirement

• Product Type
• Other, Solar On-Grid Power Plant

• Size
• Dependent on capacity and installation layout

• Switch Mode
• Other, On-Grid/Inverter Mode

• Type Of Technology
• Other, Photovoltaic (PV) On-Grid Technology

• Weight
• 18-23 kg per panel

• Application
• Other, Residential, Commercial, Industrial off-grid power supply

• Cable Length
• 5-20 meters (customizable)

• Color
• Blue / Black panels with silver frame

• Dimension (L*W*H)
• Varies as per plant configuration

• Efficiency
• 15% to 18%

• Features
• Battery backup, Inverter included, Weatherproof, Easy Installation

• Input Voltage
• Sunlight (0 - 1000V DC)

• Installation Type
• Other, Rooftop / Ground Mounted

• Maintenance Type
• Low maintenance, Periodic cleaning recommended

• Material
• Polycrystalline Silicon / Aluminum Frame

• Max System Voltage
• 1000V DC

• Max Voltage
• 36V per panel

• Number of Cells
• 60 or 72 cells per panel

• Operating Temperature
• -20C to 60C

• Output Voltage
• 12V / 24V / 48V DC / 230V AC

• Power
• 1 kW to 100 kW (customizable)

• Product Type
• Other, Solar OFF-Grid Power Plant

• Size
• Standard Panel Size (approx. 1m x 1.7m per panel)

• Switch Mode
• Other, Automatic / Manual

• Type Of Technology
• Other, Solar Photovoltaic (PV)

• Weight
• Approx. 20 kg per panel

• Application
• Other, Residential, Commercial, Industrial

• Cable Length
• Customizable, typically up to 20 meters

• Color
• Blue-Black (Panels) / Silver-Gray (Mounting Frame)

• Dimension (L*W*H)
• Varies; compact designs possible: 600x400x220 mm (inverter)

• Efficiency
• Inverter 96-98% (MPPT), Panel 17-20%

• Features
• MPPT technology, Overload protection, LCD display, Remote monitoring, Anti-islanding protection

• Input Voltage
• 180V-800V DC (inverter dependent)

• Installation Type
• Other, Rooftop/ground mounted

• Maintenance Type
• Low, periodic cleaning and inspection

• Material
• High-grade aluminum for mounting, Polycrystalline/Monocrystalline solar panels

• Max System Voltage
• 1000V DC

• Max Voltage
• 1000V DC (panel string)

• Number of Cells
• 60/72 cells per panel

• Operating Temperature
• -20C to +60C

• Output Voltage
• 230V AC or 415V AC (Three Phase)

• Power
• Varies by model (commonly available 1 kW to 10 kW)

• Product Type

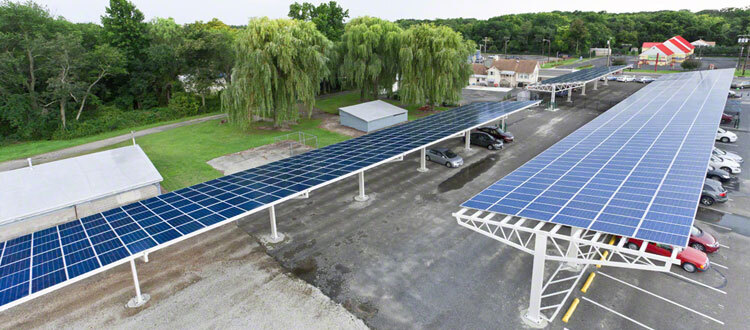

• Other, Solar Inverter With MPPT

• Size
• Depends on model, panel size typically 1650 x 992 mm each

• Switch Mode
• Other, MPPT (Maximum Power Point Tracking)

• Type Of Technology
• Other, Photovoltaic with MPPT inverter

• Weight
• Typically 8-15 kg (inverter), 18-25 kg (per panel)

• Application
• Other, Grid-tied solar power systems, Commercial & Industrial solar plants

• Cable Length
• Custom as per installation

• Color
• White and Blue

• Dimension (L*W*H)
• approx. 570 x 440 x 220 mm (varies by model)

• Efficiency
• >98%

• Features
• Transformerless, High efficiency, Compact design, LCD display, Remote monitoring, Multiple protection features

• Input Voltage
• 500V DC (MPPT range: 250-850V DC)

• Installation Type
• Other, Wall-mounted

• Maintenance Type
• Low maintenance

• Material
• High grade electrical components, Metal housing

• Max System Voltage
• 1000V DC

• Max Voltage
• 1000V DC

• Operating Temperature
• -25C to +60C

• Output Voltage
• 230/400V AC, Three phase

• Power

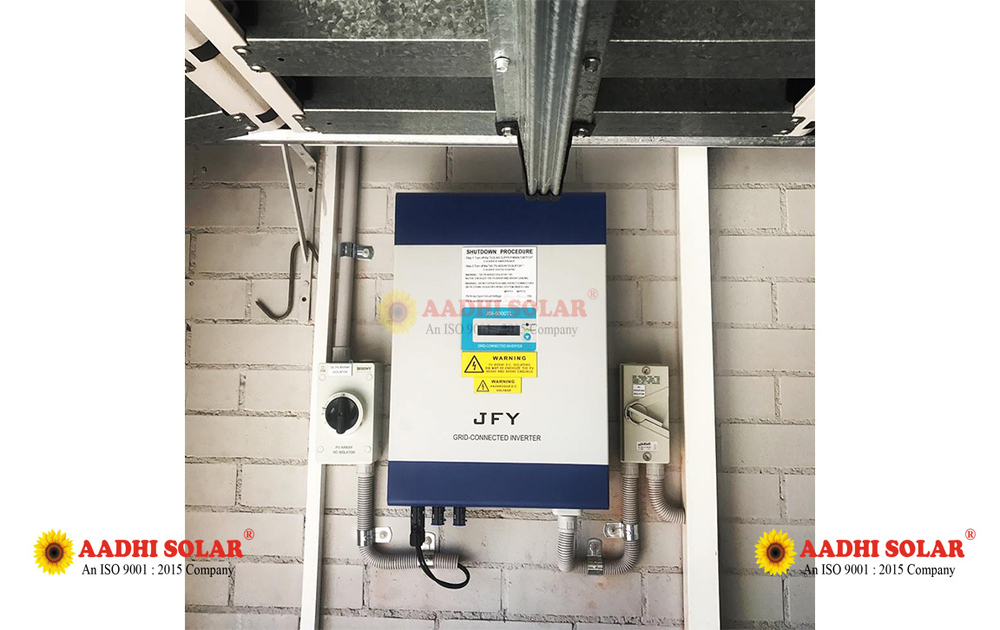

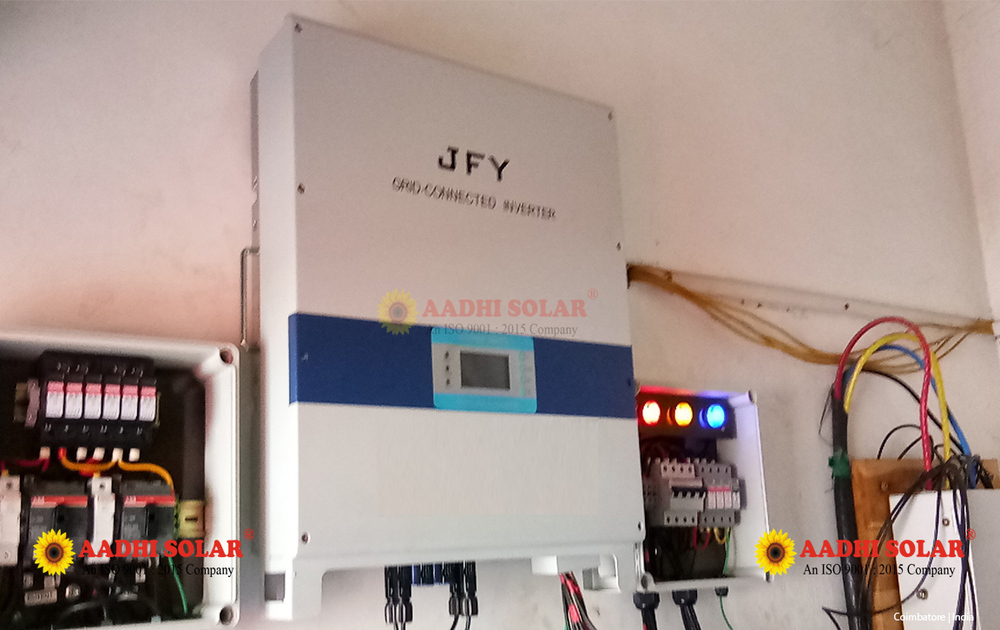

• 20KW

• Product Type
• Other, On-Grid Inverter

• Size
• Standard wall-mountable

• Switch Mode
• Other, Transformerless

• Type Of Technology
• Other, MPPT, IGBT Switching, Transformerless

• Weight
• Approx. 30-40 kg
